Description

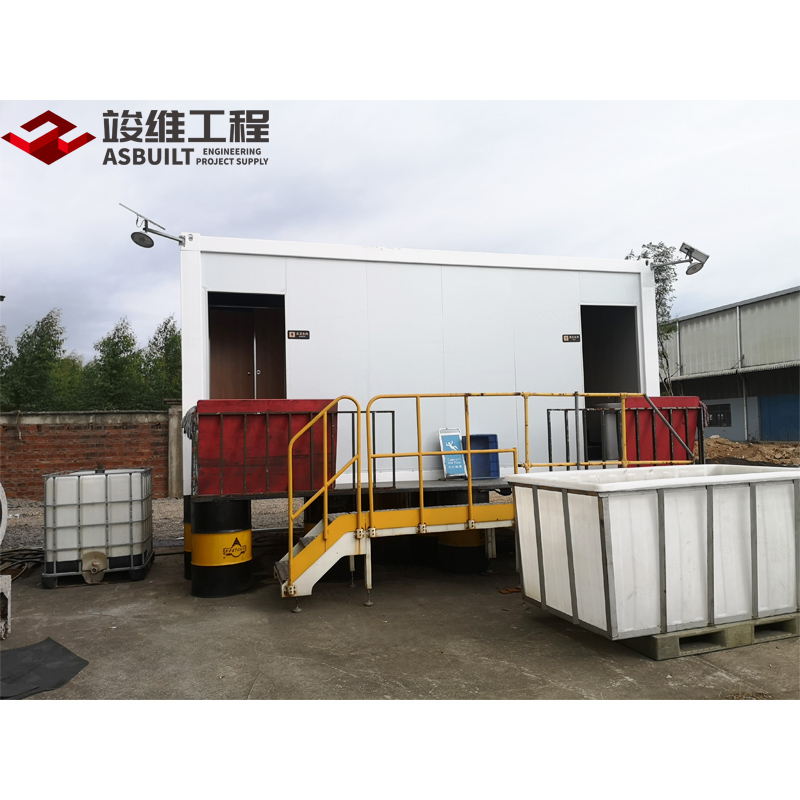

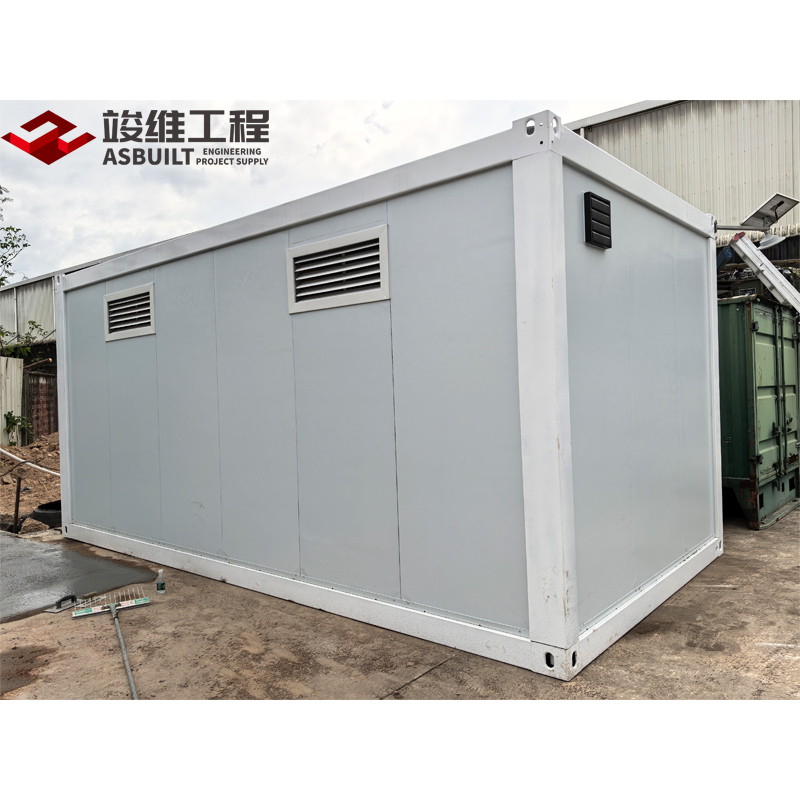

This Movable Toilet Unit is constructed using a standard 20-foot flatpack containerized housing structure. This type of ablution unit represents a highly prefabricated and well-established modular cabin solution, featuring robust galvanized steel section profiles and an insulated enclosure system. It allows for multi-level stacking up to three floors.
Each flatpack container module can be fully assembled in just 40 minutes utilizing a crane. Once assembled, the entire unit can be effortlessly lifted and transported to another location via crane operation. This approach significantly reduces the time from construction to delivery while minimizing overall expenses.

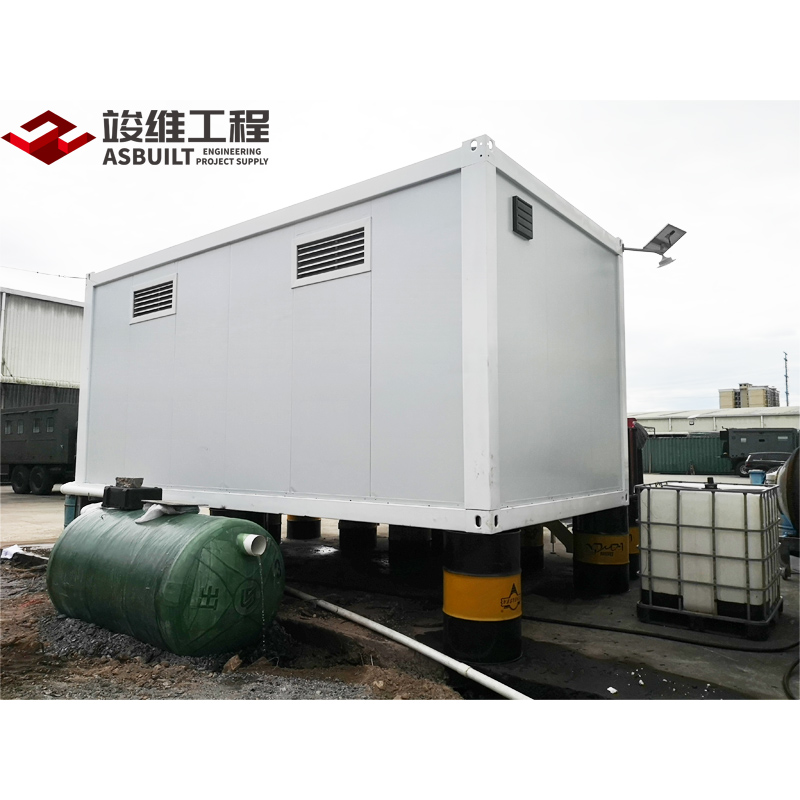

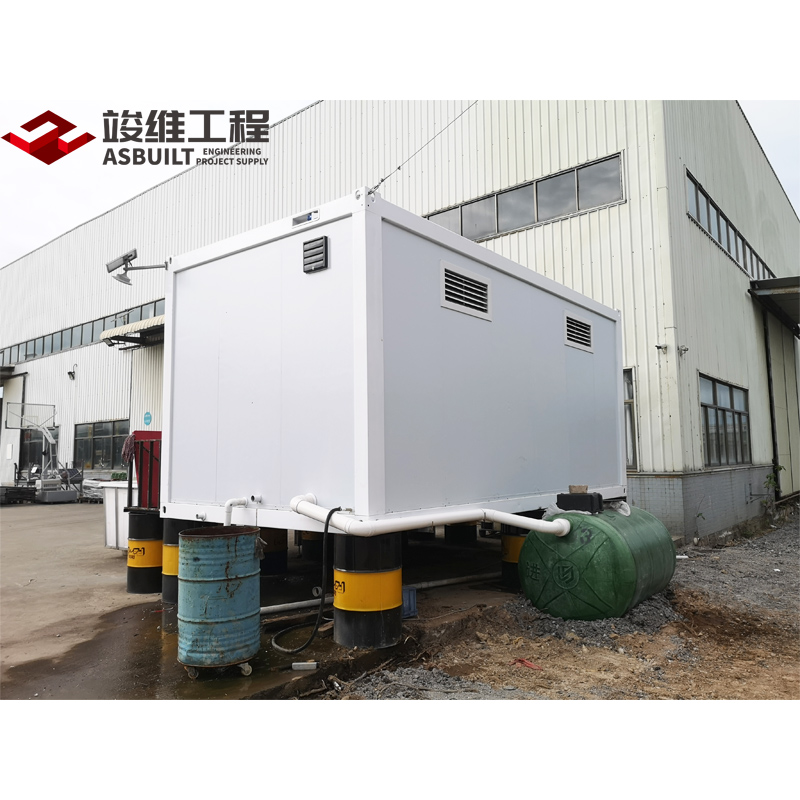

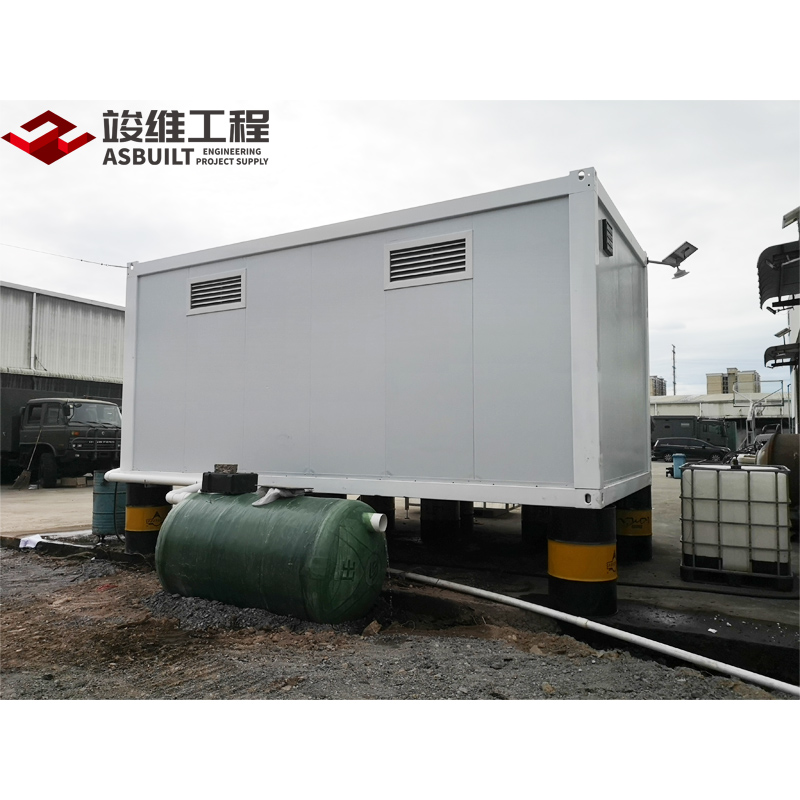

The integrated drainage system, comprising a roof gutter and concealed downpipe, effectively addresses potential water leakage issues.
The flatpack container design boasts advantages such as a solid structural framework, advanced prefabrication techniques, simple assembly process, modular flexibility for versatile configurations, and seamless mobility for relocation purposes.
Standard Dimension
20ft High-cube
L6055×W2435×H2896mm
Application
Site camp accommodation, office, residence, resort, hotel, education, medical, hospital, etc
Data Sheet of Flatpack Container House
Item | Specification | Details |
| Dimension | External | L6055×W2435×H2896mm |
| Internal | L5895×W2275×H2605mm | |
| Weight | Within the range of | 1350-1850KG |
| Loading Volume | standard 6 modules /40'HC | more or less for customized size |
| Technical Performance | Floor Load | 2.0 KN/㎡ |
| Roof Load | 0.75 KN/㎡ | |
| Wind Load | 0.50 KN/㎡ | |
| Seismic Fortification Intensity | 8 | |
| Fire Rating | Classification A1 | |
| Thermal Insulation | 0.62 W/(sqm.K) | |
| Heat Preservation | 0.043 W/(m.K) | |
| Sound Insulation | 20 DB | |
| Stacked Layers | 3 | |
| Repeated Dismantle Times | 180+ | |
| Life Time | 20+ years |
