Green Containerized Porta Cabin, Movable Flatpack Container House for Site Office/Living Home

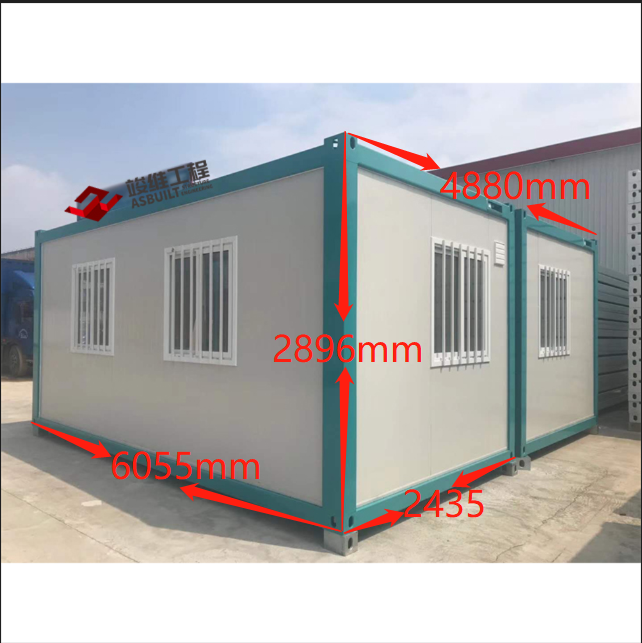

Flatpack Containerized Cabin_2Modules Dimension

2F Green Container Building_2


The flatpack container house is a kind of highly prefabricated and mature containerized porta cabin, composed of high-strength galvanized section profiles and insulated enclosure system, which can be multi stacked in 3 floors.

Each unit of flatpack container house is finished assemble in 40 minutes by using crane. After assembly, the flatpack container cabin can be hoisted wholely by crane and move to other site. It shorts the time from build to deliver and lower the overall costs.

Its integrated drainage system composed of roof gutter and hidden downpipe perfectly solves the problem of water leakage.

The flatpack container module has the excellence of integrity framework, high-level prefabrication, easy assembly,  modularization for flexible combination and bodily movement.


 Standard Dimension

  • 20ft High-cube

  • L6055×W2435×H2896mm  Flatpack Containerized Cabin_Frame Dimension20ft Flatpack Container_Dimension


Site camp accommodation, office, residence, resort, hotel, education, medical, hospital, etc

 Data Sheet of Flatpack Container House


Specification Details
Dimension External L6055×W2435×H2896mm
Internal L5895×W2275×H2605mm
Weight Within the range of 1350-1850KG
Loading Volume standard 6 modules /40'HC more or less for customized size
Technical Performance Floor Load 2.0 KN/㎡
Roof Load 0.75 KN/㎡
Wind Load 0.50 KN/㎡
Seismic Fortification Intensity 8
Fire Rating Classification A1
Thermal Insulation 0.62 W/(sqm.K)
Heat Preservation 0.043 W/(m.K)
Sound Insulation 20 DB
Stacked Layers 3
Repeated Dismantle Times 180+
Life Time 20+ years

Dimension of Flat Packing Box for deliveryFlat Packing for bulk-cargo delivery

Flat-packing Containers X8 for truck trasportation_640

Delivery and Transportation

Transportation of Container

Besides to the main body of the prefabricated house, we ASBUILT are available to offer and supply the belows supporting facilities: office furniture, hotel furniture, sanitary ware, kitchen supplies, lighting and other items as interior outfit.

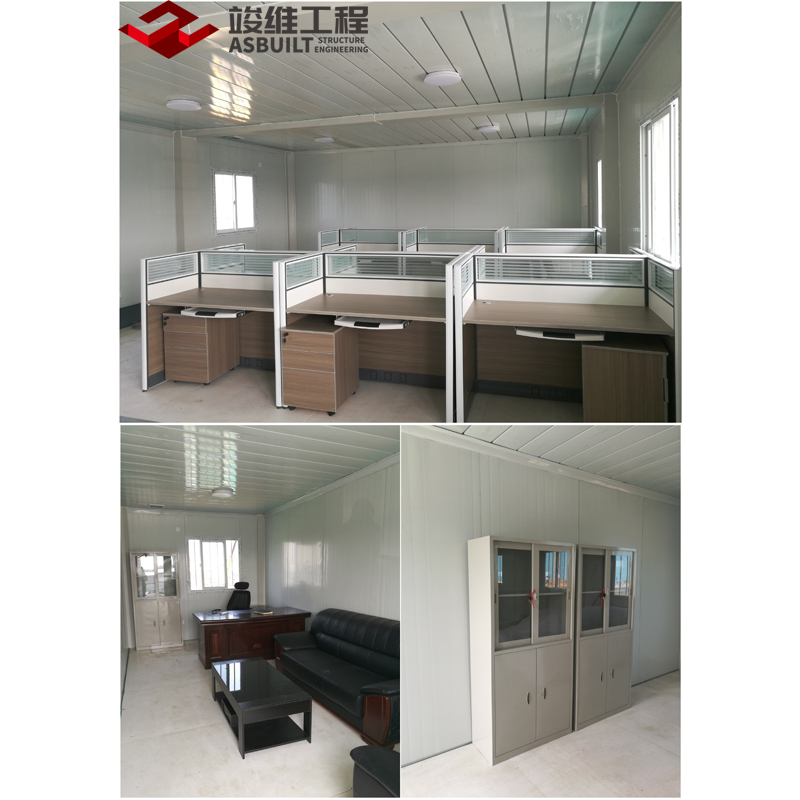

Containerized Office Furniture

ASBUILT is a team who carries on the deep plowing and skillful or intensive cultivation to prefabricated industry for more than a decade. As a one-stop integrated solution provider, ASBUILT will become your reliable project partner and provide value-added solutions for your projects.

To get more product details, welcome to contact us.
