Magnesium Oxide Board Sandwich Panel Stuffed with Rock Wool, Fire-proof MGO Board



Product: MGO Sandwich Panel be stuffed wth Rock Wool

Product Model: V1150

Panel Thickness: 50mm,75mm,100mm

Color In-stock: white gray, high gloss white, snowflake white, ivory white, fruit basket, fruit green, silver gray, orange

Product Parameters:

1. The finite width is 1150mm, the length is customized according to customer requirements.

2. The normal thickness of panel is 50mm, GI sheet is 0.426mm.

3. The weight per square meter is 26KG.

4. The Uniformly distributed bearing gravity is 180KG/sqm.

5. The stuffing Rock Wool improves its performance on both fire resistance and insulation for heat and sound.

Product Advantages:

1. Male - female mouth type splicing, easy to install

2. Fire-proof, resistance grade A1, it's fire resistance limit is 60 minutes. MGO is a kind of noncombustible materials with a fire-resistant capacity of more than 1000℃, and also the stuffed Rock Wool.

3. High density, high strength, environmentally friendly.

Product Application: Widely used as exterior and internal wall panel of workshop, plant and indoor cubicle which has strict requirements for fire and environmental prevention, such as the indoor partition of clean rooms for the industry of medicine, electronics, biological research, food, beverages, etc.

Product Display:

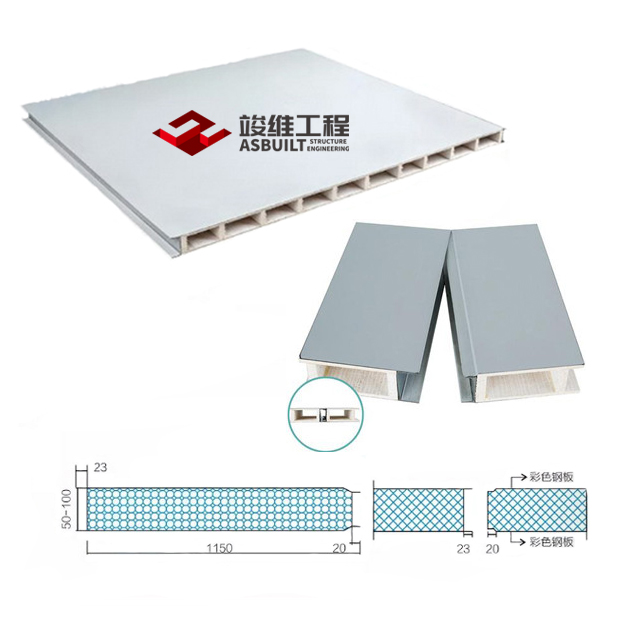

MGO Sandwich Panel_007


1. What's the connection type of MGO sandwich panel?

A: Flat Board: Male and female connection.

2. What's the optional color?

A: According to international RAL, normal color is off-white.

3.What's the material of the surface plate?

A: Pre-painted steel sheet which with galvanized sheet inside and paint by powder coated after.

4. What's the surface treatment of MGO sandwich panel?

A: Pre-painted, powder coated.

5.What's the minimum order quantity (MOQ)?

A: 500m2 of MGO sandwich panel.

6. What's the delivery time of MGO sandwich panel?

A: 7 days at the soonest.
